PIPE STRAIGHTENING MACHINE

1 / 4

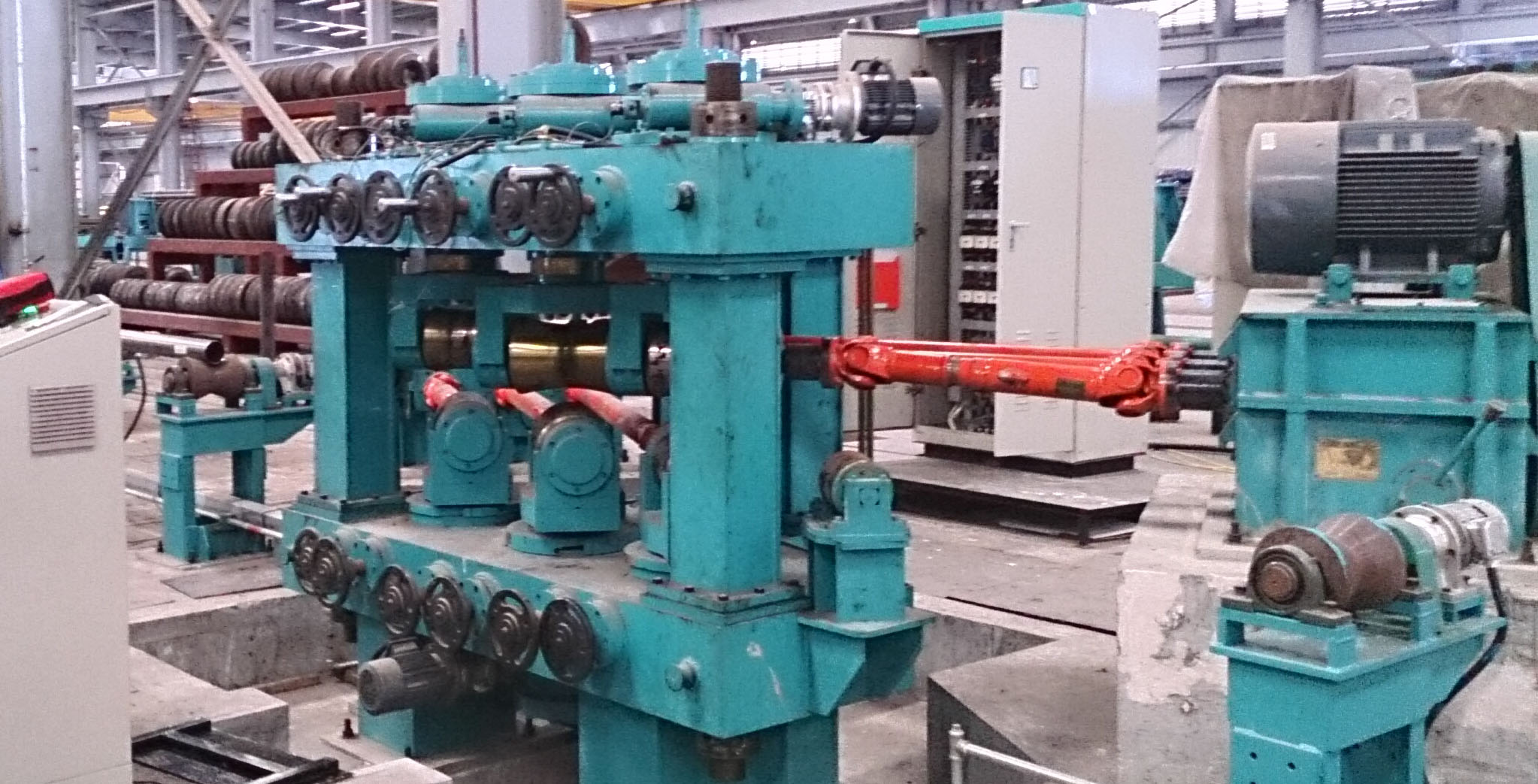

PIPE STRAIGHTENING MACHINE - SSM 114
2 / 4

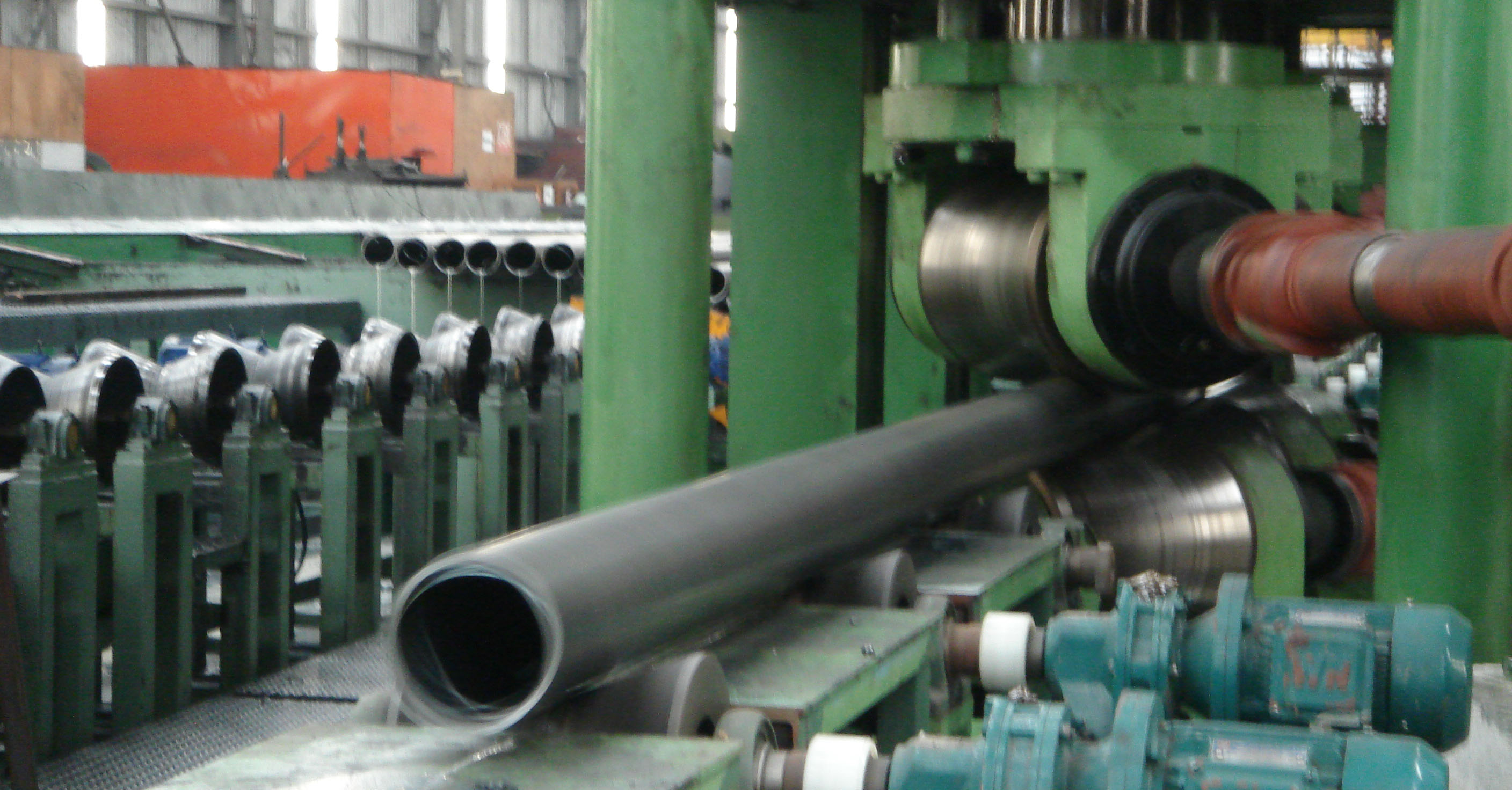

PIPE STRAIGHTENING MACHINE - SSM 178
3 / 4
PIPE STRAIGHTENING MACHINE - SSM 178
4 / 4
PIPE STRAIGHTENING MACHINE - SSM 114





Video - Pipe Straightening - SSM 76



Video - Pipe Straightening - SSM 50



Video - Pipe Straightening - SSM 114



SMACO Pipe Straightening Machine are fully automatic with entry and exit conveyor. Heavy duty construction to ensure rigidity of machine during straightening operation.



Machine capacity up to 12" pipe diameter and thickness 12.7mm for carbon steel pipe, API pipe and seamless pipe.



MACHINE FEATURES

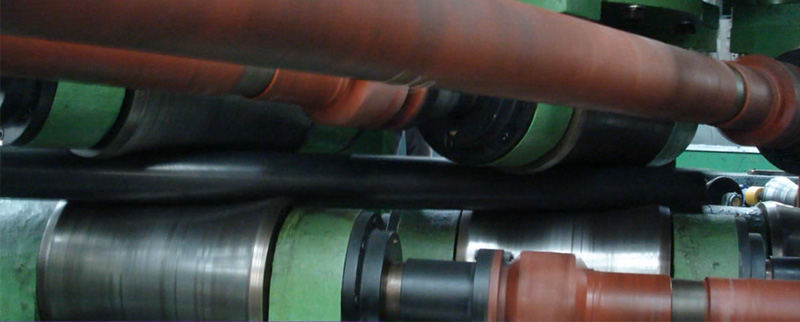

  • Straightening machine shall be 6 horizontal cross roll type.
  • Top and bottom rolls driven by 2 motors via gear reducer and universal joint.
  • All top roll adjustable up / down and angular rotation.
  • All bottom roll are adjustable angular rotation with center roll additional up / down adjustment.
  • Quick lift feature available as option for top roll to prevent pipe end dented when pipe entering straightening roller.
  • Automatic roll setting available as option, this feature allows automatic roll setting during size change based on pipe size, wall thickness and material yield strength. Computer unit shall be provided for roll setting data recording and to be recall during size change.
  • Heavy duty and quality components ensure reliability.























27 Years In Steel Pipe Industry With Reliable And Heavy Duty Pipe Mill Equipment

Our reputation for uncompromising standards can be seen in the range of products and services we offer:

  • ERW pipe mill lines and machineries including entry coil handling and joining system, pipe transfer and bundling system
  • Pipe finishing equipment with transfer and handling system for automated finishing operation, namely end facing, threading, straightening and hydro testing
  • Roll forming lines and machinery for profiles including on-line punching and embossing
  • Mill tooling, hollow section and roll forming profile. Experienced design engineer with COPRA Roll form software ensure precise mill tooling design
