PIPE HYDROTESTER

1 / 6

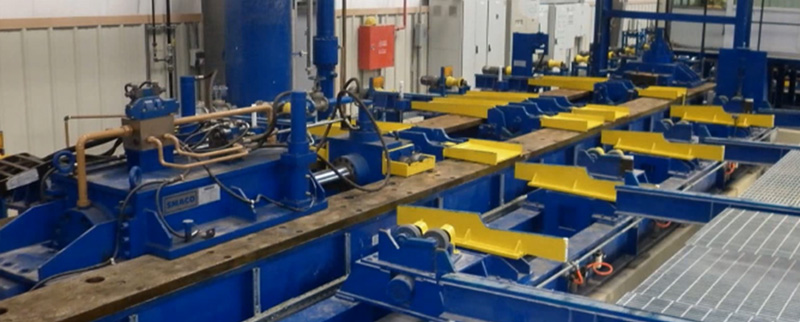

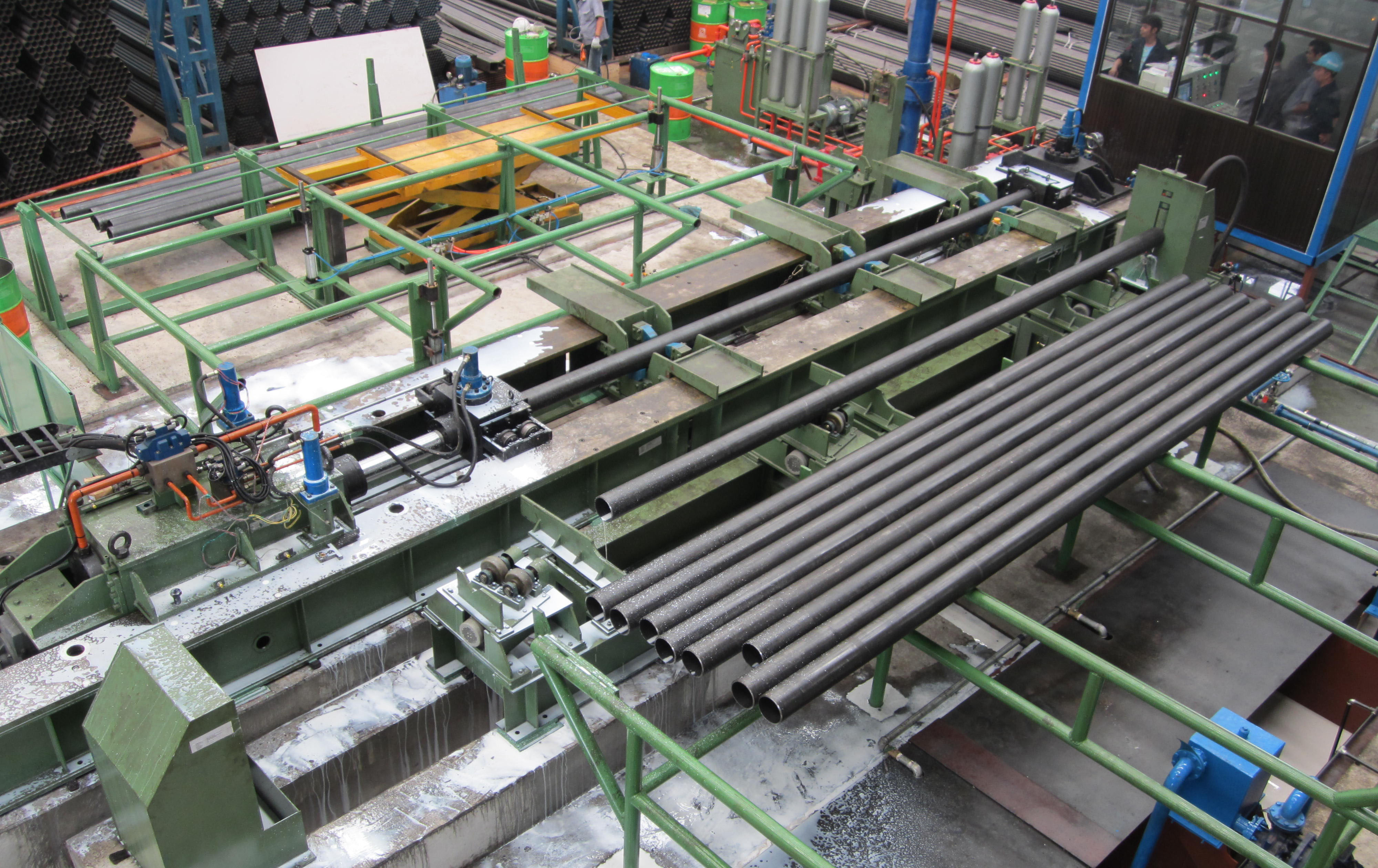

HYDROTESTER SHT - 219
2 / 6
HYDROTESTER SHT - 219
3 / 6
HYDROTESTER SHT 2 - 178
4 / 6

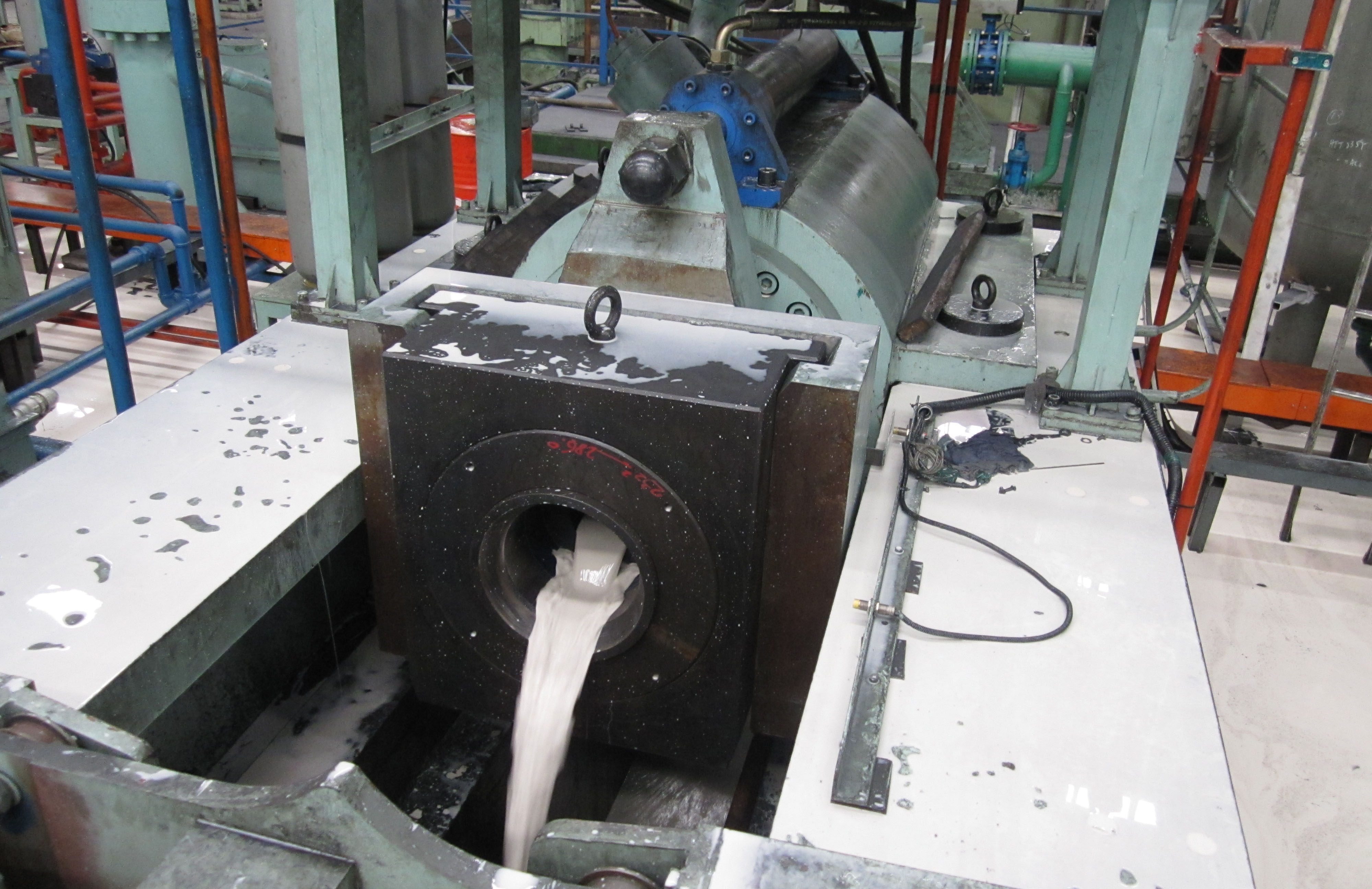

HYDROTESTER SHT - 457
5 / 6

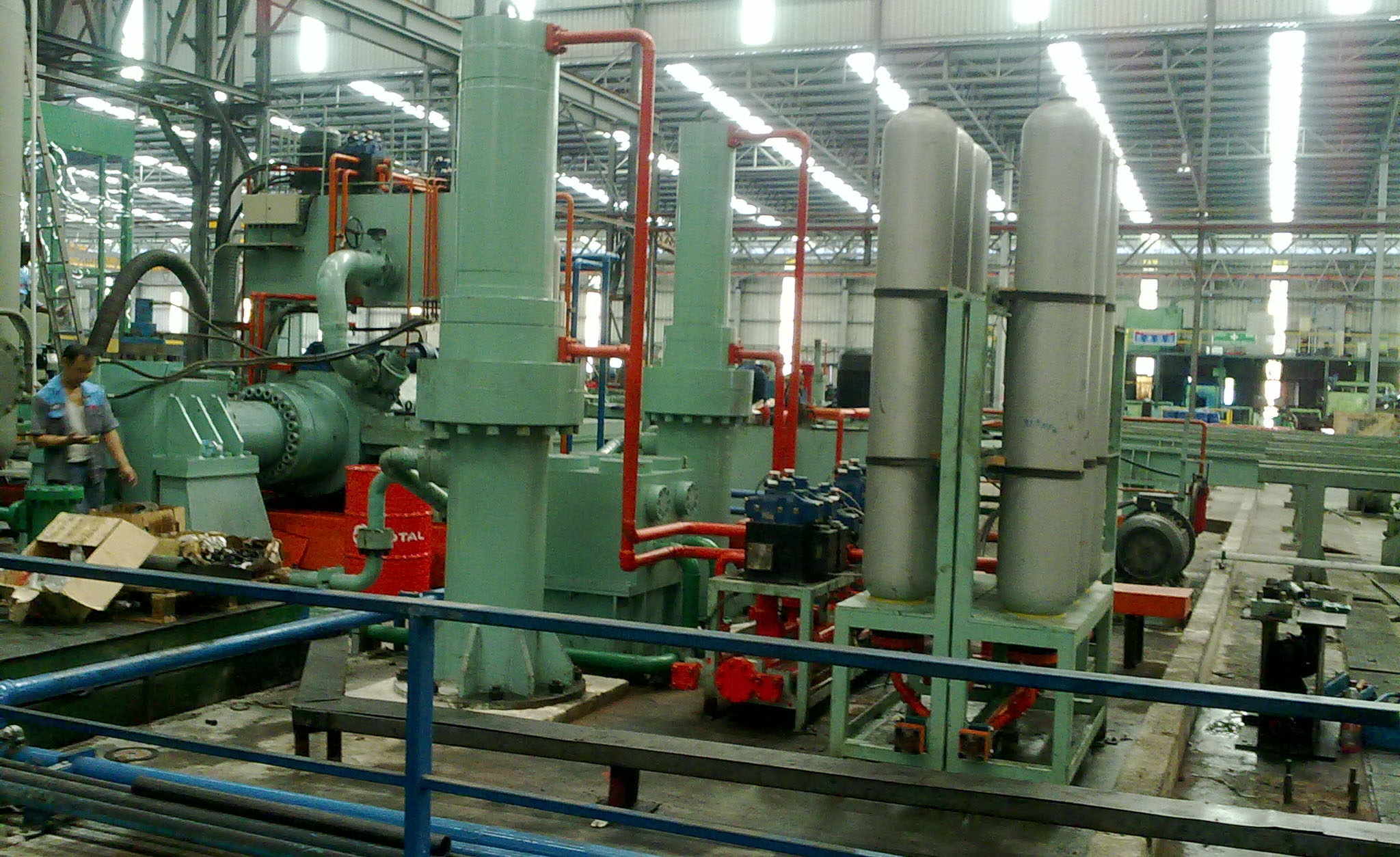

HYDROTESTER - HIGH PRESSURE INTENSIFIER
6 / 6

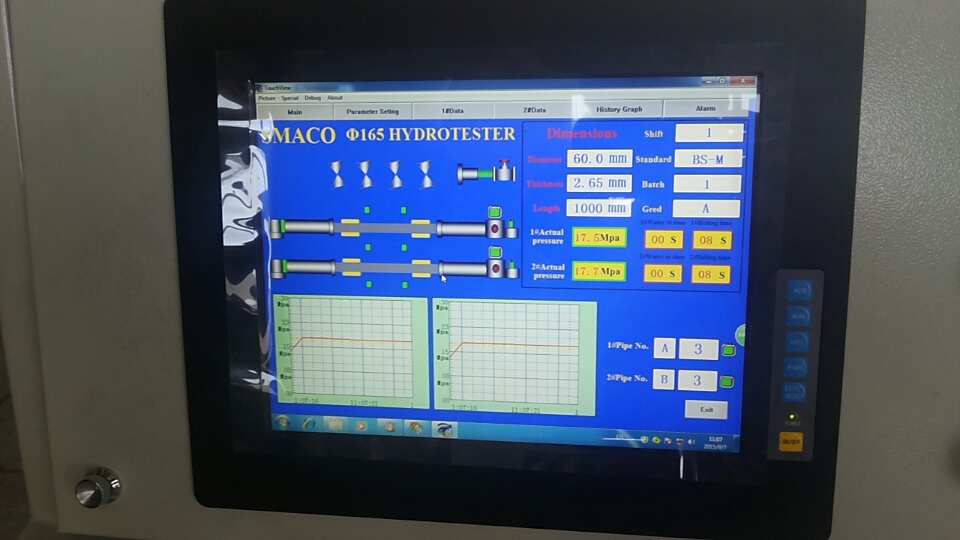

HYDROTESTER - PRESSURE TIME CURVE



Video - Hydrotester - SHT 6 - 76



Video - Hydrotester - SHT 325



Video - Hydrotester - SHT 2 - 168





SMACO Automatic Pipe Hydrotester System is designed in accordance to test pressure and production requirement.



Single or multiple pipe testing, the system allows up to 6 pipes per cycle testing with maximum 10,000psi (70Mpa) test pressure.



Size range from 1/2" to 24" for ERW pipe and bigger sizes for spiral pipe pressure testing.



Machine Features
  • Pipe Alignment and internal flushing.
  • Stationery head stock with single or multiple test head adapter, water inlet and high-pressure connection. Moveable head stock, test head interchangeable to suit pipe size.
  • For multiple pipe testing, test pressure is individually controlled with separate high pressure intensifier. Test head travel cylinder is individually controlled allowing pipe length variance without water leakage. Test result is individually recorded and in the event if 1 pipe failed, the system allow other pipe to continue testing.
  • High pressure hydraulic intensifier with automatic pressure control system with safety cut-off.
  • Automatic test cycle control with computer for various test pressure setting, pressure holding time and time / pressure test cycle recording.



















27 Years In Steel Pipe Industry With Reliable And Heavy Duty Pipe Mill Equipment

Our reputation for uncompromising standards can be seen in the range of products and services we offer:

  • ERW pipe mill lines and machineries including entry coil handling and joining system, pipe transfer and bundling system
  • Pipe finishing equipment with transfer and handling system for automated finishing operation, namely end facing, threading, straightening and hydro testing
  • Roll forming lines and machinery for profiles including on-line punching and embossing
  • Mill tooling, hollow section and roll forming profile. Experienced design engineer with COPRA Roll form software ensure precise mill tooling design
